5 Use this circuit diagram to answer the following question

Last updated: 4/25/2023

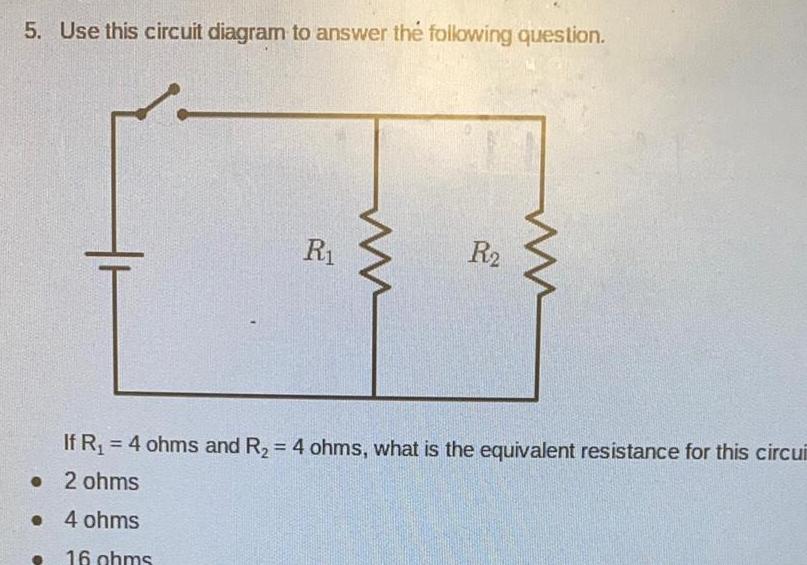

5 Use this circuit diagram to answer the following question R 4 ohms 16 ohms R ww If R 4 ohms and R 4 ohms what is the equivalent resistance for this circui 2 ohms
