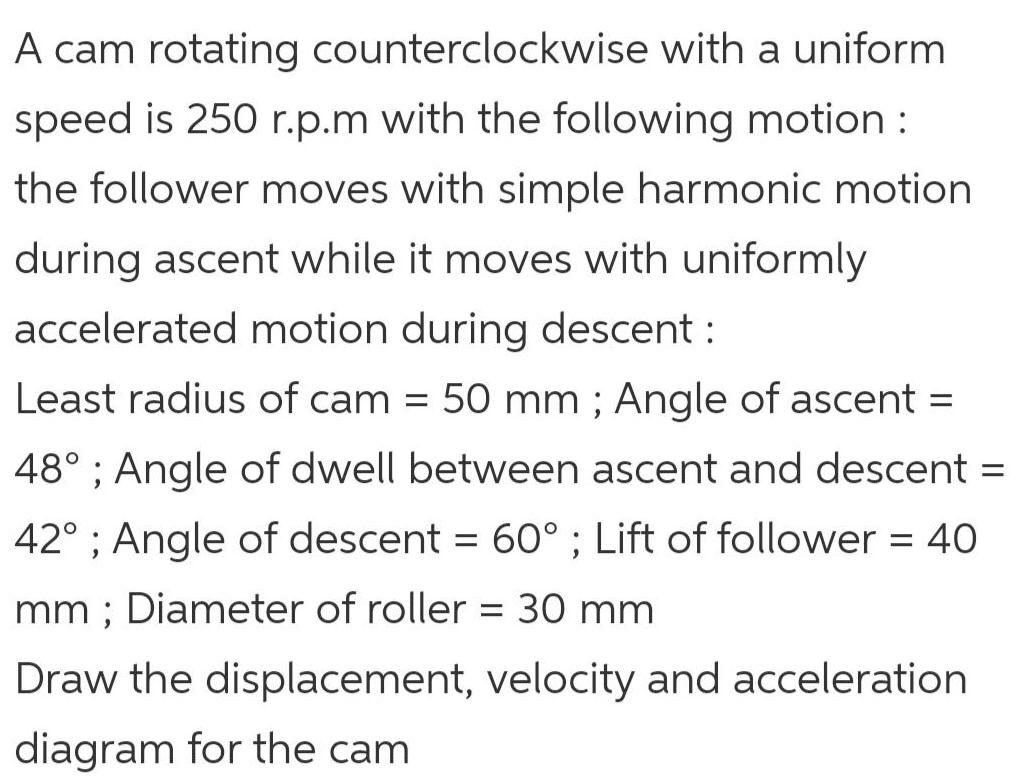

A cam rotating counterclockwise with a uniform speed is 250 r p m with the following motion the follower moves with simple harmonic motion during ascent while it moves with uniformly accelerated motion during descent Least radius of cam 50 mm Angle of ascent 48 Angle of dwell between ascent and descent 42 Angle of descent 60 Lift of follower 40 mm Diameter of roller 30 mm Draw the displacement velocity and acceleration diagram for the cam
